A Supplier reports a double edge blade close to its nominal thickness, but incoming inspection records a different result. Both inspectors use digital instruments and trust their readings. The disagreement can hold a shipment even when the difference comes from contact position, measuring force, surface condition, or instrument capability. Adding more decimal places does not resolve these variables. Reliable double edge razor blade thickness measurement starts with a shared method: define the measured surface, locate suitable contact areas, qualify the gauge, control the force, and retain individual readings. For quality managers and blade buyers, this approach creates a useful acceptance discussion. The approved drawing supplies the tolerance; the measurement procedure supplies evidence that both parties are evaluating the same characteristic.
For 0.10 mm DE blade inspection, define the measurand, approved contact positions, suitable gauge capability, controlled measuring force, repeatability, and reporting rule. Haward can help OEM and ODM buyers align these requirements for Customizable blade projects. Nominal thickness is 100 µm; acceptance limits must come from the approved drawing.
The following sections explain how to turn a nominal thickness into a repeatable inspection method. Quality managers, blade buyers, and metrology teams can use the sequence to review instruments, qualify contact conditions, compare operator results, and request a report that supports a clear decision rather than another disputed gauge reading.
Define the Measurand before Selecting the Gauge
The measurand is the quantity intended to be measured. Here, “blade thickness” needs a precise definition. Does the drawing specify the steel substrate before surface treatment, or the finished blade at designated body locations? These measurements may not describe the same characteristic.
Before starting 0.10 mm DE blade inspection, agree:
- Product state: unfinished blank, treated blade, or finished packed product.
- Surface condition: which coatings or protective films remain during measurement.
- Excluded features: cutting bevels, raised markings, burrs, or other areas outside the defined thickness characteristic.
- Acceptance basis: drawing number, revision, limits, and whether requirements apply at every specified location.
Do not remove a coating or wipe the sample with an unapproved solvent simply to obtain a stable reading. Preparation must preserve the characteristic being inspected. Features excluded from body-thickness measurements still need their own applicable inspection controls.
For a Customizable OEM or ODM blade, this agreement belongs with the inspection specification. It prevents a Manufacturer’s substrate measurement from being compared directly with a buyer’s finished-surface measurement without recognizing the difference.
Map Contact Positions on Solid, Flat Blade Material
Successful razor blade micrometer measurement requires both contacts to engage the intended blade surfaces. The cutting bevel is unsuitable for a body-thickness check because it is deliberately reduced toward the edge. Slots, notches, and raised features can also change how the instrument seats.
- Define positions such as P1, P2, and P3 on an approved drawing or photograph.
- Check that the complete contact footprint fits the chosen solid land.
- Keep opposing contacts aligned through the same local thickness region.
- Support the sample without adding tape, packing material, or fixture thickness to the reading.
- Use handling tools that protect the cutting edges and avoid bending the blade.
A standard broad anvil may bridge an opening or overlap a bevel. Smaller contacts can improve access, but their contact pressure and seating behavior need separate qualification.
Measuring a stack and dividing by the blade count is a different method. Trapped gaps, surface films, and burrs can affect the stack. Use it for individual-blade acceptance only if that method has been validated and approved.
Select Capability from the Tolerance, Not the Display
ISO 3611:2023 addresses the design and metrological characteristics of external micrometers. It does not prescribe a Razor blade thickness tolerance or establish that any particular micrometer suits this task.
| Example Configuration | Indication Increment | Equivalent | Selection Consideration |
|---|---|---|---|
| Digital caliper | 0.01 mm | 10 µm | May be too coarse for the drawing tolerance |
| Digital micrometer | 0.001 mm | 1 µm | Check calibration, force, contact geometry, and repeatability |
| Precision comparator or high-resolution micrometer | 0.0001 mm | 0.1 µm | Finer indication still requires method qualification |
Review the instrument’s specified errors, calibration uncertainty, working range, measuring faces, and force mechanism. A finer display cannot compensate for unstable seating or an unsuitable contact area.
The Supplier and buyer should select a measurement capability appropriate to the agreed tolerance and decision rule. Avoid treating a generic resolution ratio as an automatic approval. This keeps double edge razor blade thickness measurement tied to the actual acceptance requirement.
Control Zero, Reference Checks, and Temperature
Clean measuring faces and a stable setup are essential. A zero check confirms the indication at closure; it does not replace calibration or demonstrate performance near the blade’s thickness.
- Review the instrument identification, calibration status, and applicable corrections.
- Inspect and clean the contacts using the instrument manufacturer’s procedure.
- Verify performance with a traceable reference or calibration arrangement covering the relevant working region.
- Allow the instrument, reference, and samples to stabilize under the documented laboratory conditions.
- Repeat a reference check after the measurement session and investigate significant drift.
ISO 1:2022 specifies 20°C as the standard reference temperature for dimensional properties. This is not a universal conditioning time or an instruction to assign every setup the same thermal uncertainty.
Record the actual conditions and evaluate relevant temperature effects in the method. Reduce frame heating from prolonged handling. For a Haward OEM project, both parties should use the same documented setup when comparing results, rather than relying only on matching instrument display settings.
Qualify Measuring Force instead of Assuming Lower Is Better
Measuring force interacts with contact area, seating, surface films, and sample support. A blade can shift or bend if the contact arrangement is unsuitable. Increasing force to stop movement may conceal the setup problem.
Mitutoyo’s published adjustable-force micrometer examples include a 0.5–2.5 N range. This describes available instrument capability, not a recommended force range for every DE blade.
- During development, compare selected force settings within the instrument’s qualified range.
- Use matched contact positions and samples to separate force effects from location variation.
- Check for marking, slipping, unstable seating, or persistent reading changes.
- Freeze the approved force, approach procedure, and reading time.
A ratchet procedure should follow the instrument instructions; a stated number of clicks is not a transferable force value between different gauges.
Where contact rotation could disturb the surface, assess a nonrotating spindle or another suitable arrangement. The Manufacturer and quality buyer should approve the full contact setup for reproducible razor blade micrometer measurement.
Study Repeatability with Independent Repositioning
Repeatedly reading a display without releasing the contacts does not test the complete inspection procedure. For double edge razor blade thickness measurement, repeatability should include reopening the gauge and repositioning the same marked location.
An illustrative method study could use 10 blades, 2 operators, and 3 independent placements at one defined location per blade, producing 60 readings. This is a development example, not a required lot-sampling plan.
- Keep blade identities and measurement locations traceable.
- Vary the measurement order to reduce memory effects.
- Compare variation within an operator and differences between operators.
- Investigate contact positioning, force, cleaning, and handling before interpreting differences as product variation.
The International Vocabulary of Metrology distinguishes measurement precision conditions. Changing operators is useful, but it should not be described as identical-condition repeatability.
For an ODM development program, repeat the study when contact geometry, fixtures, or relevant surface treatments change. Compare results against the agreed measurement-performance requirement rather than imposing an unexplained universal percentage threshold.
Include Uncertainty in the Acceptance Decision
Good blade thickness reporting separates the observed indication from the evidence supporting a conformity statement. JCGM GUM-1:2023 introduces the evaluation and use of measurement uncertainty. Relevant contributors can include calibration, resolution, repeatability, contact force, positioning, surface condition, and temperature.
Evaluate those contributors for the actual method. Calibration uncertainty alone is not necessarily the uncertainty of a finished-blade measurement.
- Drawing limits: identify the required thickness interval.
- Reported result: state the value and any applicable correction.
- Uncertainty: provide the evaluated value and coverage information as required.
- Decision rule: explain how conformity is determined near a limit.
ILAC-G8:09/2019 provides guidance on decision rules and conformity statements. Agree the applicable rule before inspection; do not invent a guard band after seeing a disputed result.
If the method cannot support the required decision, improve it or use an appropriately capable laboratory. This gives a Supplier and buyer a technical route to agreement without repeatedly testing until a preferred number appears.

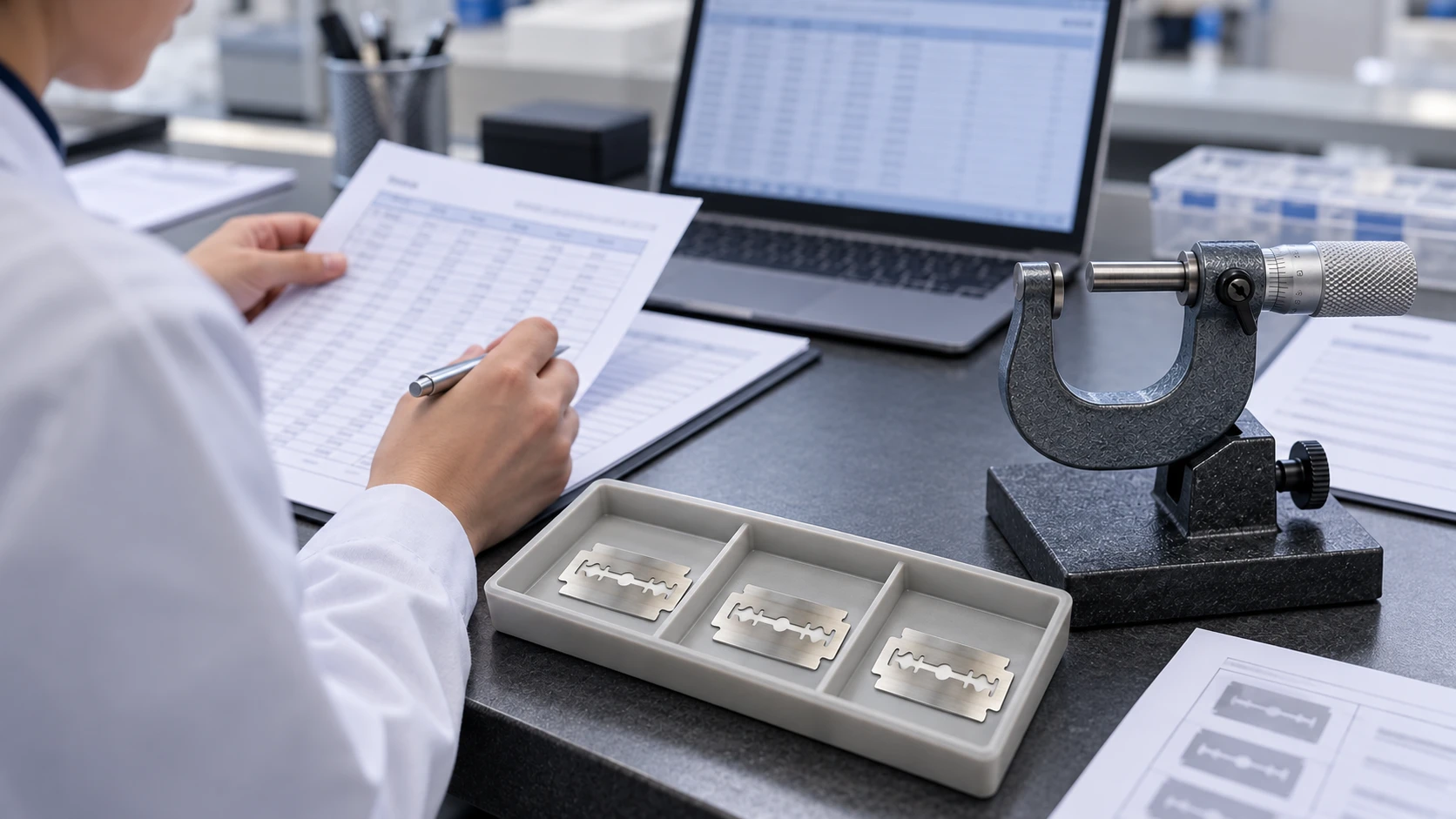

Report Individual Locations and the Measurement Conditions
The table illustrates blade thickness reporting for one hypothetical blade using a method with a 0.1 µm indication increment. It is not Haward production data and does not establish conformity.
| Location | Reading 1 | Reading 2 | Reading 3 | Range |
|---|---|---|---|---|
| P1 | 100.0 | 100.1 | 100.0 | 0.1 |
| P2 | 100.2 | 100.2 | 100.1 | 0.1 |
| P3 | 99.9 | 100.0 | 99.9 | 0.1 |
Attach the lot and blade IDs, drawing revision, location map, instrument ID, contact geometry, force, preparation method, environmental conditions, operator, and date. Include uncertainty and the decision rule where conformity is reported.
Retain individual values even when averages are requested. Averaging different positions must not conceal a local failure where the drawing requires each position to comply. Keep units explicit: 100.0 µm = 0.1000 mm.
Before the next OEM order, align the report template with the Manufacturer. A Customizable project benefits from a shared record that another inspector can reproduce.
Agree the Method before Approving the Lot
Send Haward your approved thickness drawing, surface condition, inspection equipment details, and reporting requirements. We can help define an OEM or ODM measurement brief with clear contact positions, force controls, and acceptance responsibilities for your next double edge blade project.
